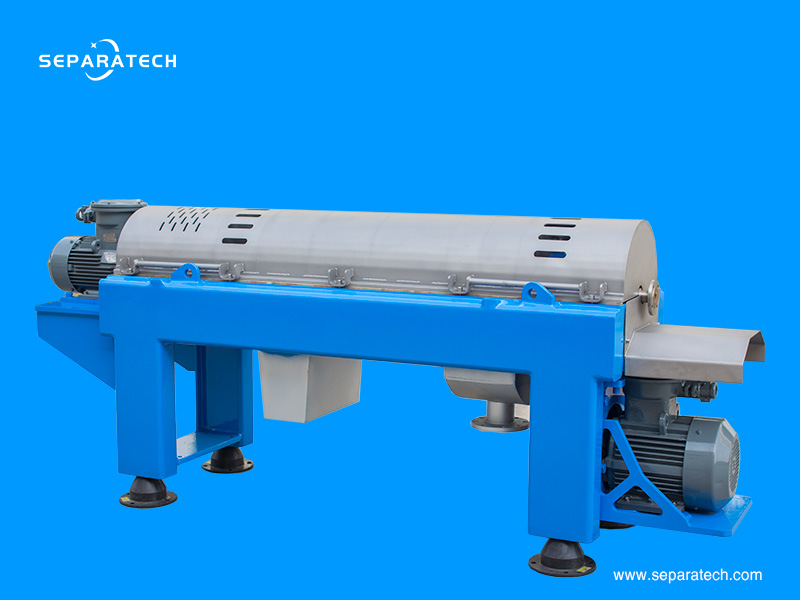

Small Decanter Centrifuge for Pilot Scale and Industrial Applications
A Small Decanter Centrifuge is an ideal solution for pilot plants, research facilities, and small-scale industrial processes where efficient solid-liquid separation is required but a full-size industrial decanter centrifuge is unnecessary.
Compared with conventional large-capacity decanter centrifuges, small decanter centrifuges provide a compact footprint, lower operating cost, flexible installation, and excellent separation performance for low to medium throughput applications.
SEPARATECH Small Decanter Centrifuge is designed for process development, pilot testing, and specialized industrial applications, offering reliable separation technology based on the same engineering principles used in full-scale industrial decanter centrifuge systems.

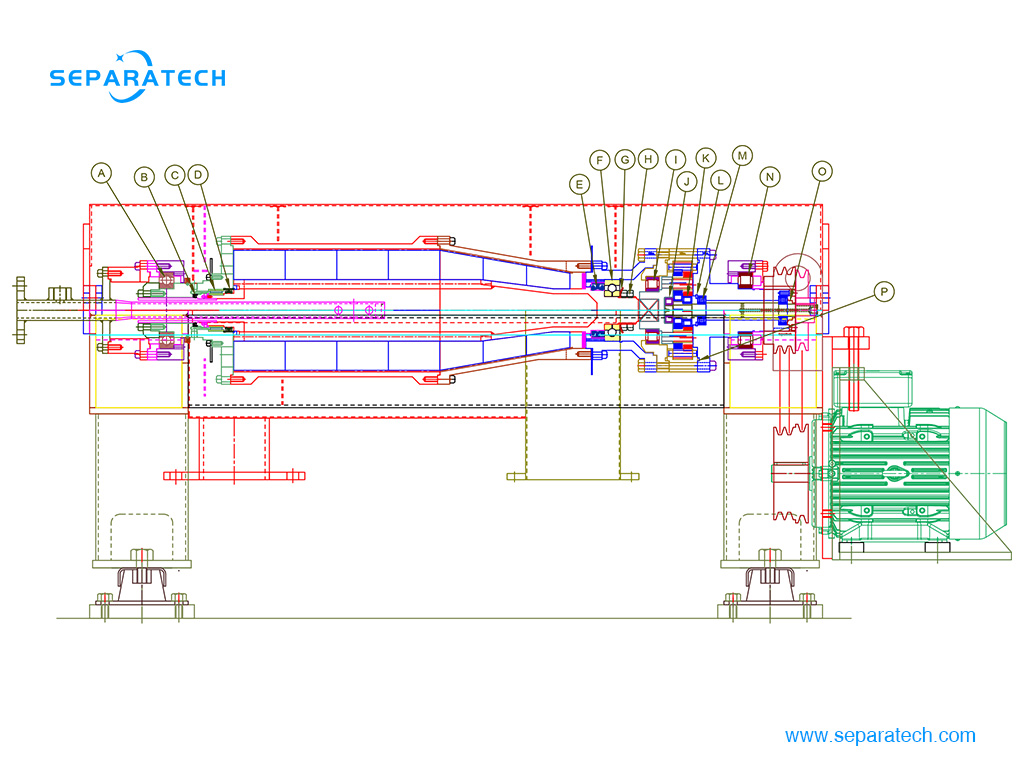

Compact Design of Small Decanter Centrifuge
A Compact Decanter Centrifuge provides the advantages of continuous centrifugal separation in a smaller and more flexible configuration.
Traditional industrial decanter centrifuges are normally designed for large processing capacities in industries such as wastewater treatment, food processing, chemical manufacturing, and mining. However, many applications require a smaller solution for:
- Process testing
- New product development
- Pilot production
- Small batch manufacturing
- Laboratory-to-industrial scale-up
A small decanter centrifuge offers:
- Reduced installation space
- Lower power consumption
- Easier transportation and installation
- Flexible process adjustment
- Lower investment cost
This makes it particularly suitable for companies developing new separation processes or operating specialized production lines.

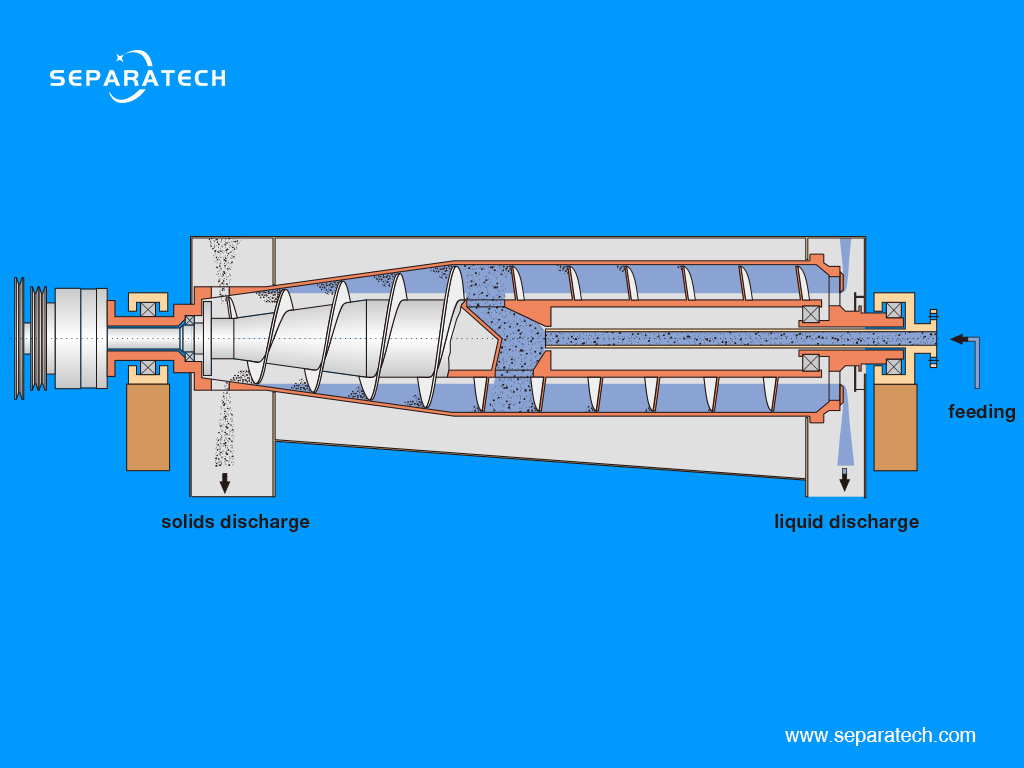

Small Decanter Centrifuge Working Principle
The working principle of a Small Decanter Centrifuge is based on continuous sedimentation under high centrifugal force.
During operation, the feed slurry enters the rotating bowl through the feed pipe. Under thousands of times gravitational acceleration (G-force), solid particles rapidly settle against the bowl wall. Separation takes place in a horizontal cylindrical bowl equipped with a screw conveyor.
The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet distributor. The centrifugal force that results from the rotation then causes sedimentation of the solids on the wall of the bowl.
The conveyor rotates in the same direction as the bowl, but slightly slower, thus moving the solids towards the conical end of the bowl. The cake leaves the bowl through the solids discharge openings into the casing. Separation takes place throughout the entire length of the cylindrical part of the bowl, and the clarified liquid leaves the bowl by flowing over adjustable plate dams into the casing.
The continuous operation principle allows the small decanter centrifuge to achieve efficient solid-liquid separation without manual filtration or batch operation.
Small Decanter Centrifuge vs Industrial Decanter Centrifuge
Although a Small Decanter Centrifuge follows the same separation principle as a large industrial decanter centrifuge, there are important differences in application requirements.
| Feature | Small Decanter Centrifuge | Industrial Decanter Centrifuge |
|---|---|---|
| Processing capacity | Low to medium flow rate | High continuous capacity |
| Application | Pilot plants, R&D, specialty production | Large-scale production |
| Installation | Compact footprint | Requires larger installation space |
| Investment | Lower initial cost | Higher capital investment |
| Flexibility | High flexibility for testing | Optimized for stable production |
For companies developing new processes, a small decanter centrifuge provides an effective bridge between laboratory testing and full-scale industrial production.
Applications of Small Decanter Centrifuge
A Small Decanter Centrifuge can be used across various industries where continuous solid-liquid separation is required.
Chemical Industry
Applications include:
- Chemical slurry separation
- Catalyst recovery
- Precipitate concentration
- Process development testing
Small-scale equipment allows chemical engineers to evaluate separation performance before investing in large production systems.
Food and Beverage Industry
Typical applications include:
- Juice clarification
- Starch separation
- Vegetable and fruit processing
- Protein recovery
The compact design makes it suitable for specialty food production and product development.
Pharmaceutical and Biotechnology Industry
Small decanter centrifuges are commonly used for:
- Process validation
- Biomass separation
- Fermentation broth treatment
- Pilot-scale production
For sensitive processes, equipment configuration can be customized according to material characteristics.
Environmental Applications
Potential applications include:
- Small wastewater treatment systems
- Sludge concentration
- Industrial wastewater testing
- Mobile treatment units
Technical Features of SEPARATECH Small Decanter Centrifuge
SEPARATECH Small Decanter Centrifuge is engineered with industrial-grade components to provide reliable separation performance.
| Designation | Bowl speed (rpm) | Bowl ID (mm) | Max. G-force (g) | Primary Motor (Kw) | Secondary motor (Kw) | Weight (Kg) |
|---|---|---|---|---|---|---|
| SSC1640 | 6000 | 160 | 3254 | 4 | 2.2 | 800 |
| SSC2040 | 5500 | 200 | 3418 | 5.5 | 3 | 1100 |
| SSC2540 | 5000 | 250 | 3531 | 7.5 | 4 | 1300 |
Key features include:
High-Efficiency Separation
The optimized bowl design and scroll configuration provide effective separation of suspended solids from liquid phases.
Compact Mechanical Structure
The compact design reduces installation requirements while maintaining industrial operating reliability.
Adjustable Differential Speed
The scroll differential speed can be optimized according to:
- Solid concentration
- Particle size
- Feed characteristics
- Required dryness level
Flexible Configuration Options
Depending on customer requirements, configurations may include:
- Different bowl materials
- Wear-resistant protection
- Various discharge designs
- Customized feed systems
- Explosion-proof configurations
Pilot Scale Decanter Centrifuge for Process Development
A Pilot Scale Decanter Centrifuge plays an important role in industrial process development.
Before investing in a large production centrifuge, engineers often need to evaluate:
- Separation efficiency
- Solid recovery rate
- Liquid clarification performance
- Polymer consumption
- Energy consumption
- Operating parameters
Pilot-scale testing provides valuable process data and reduces technical risks during scale-up.
SEPARATECH small decanter centrifuge systems are suitable for companies requiring reliable pilot testing equipment before moving to full industrial production.
Why Choose SEPARATECH Small Decanter Centrifuge
SEPARATECH combines professional centrifuge engineering experience with manufacturing capabilities to provide customized separation solutions.
Our advantages include:
Engineering Experience
With extensive experience in decanter centrifuge components and systems, SEPARATECH understands critical factors affecting centrifuge performance, including:
- Bowl design
- Scroll structure
- Wear protection
- Dynamic balancing
- Separation efficiency
Customized Solutions
Every separation process is different. SEPARATECH provides customized solutions based on:
- Material characteristics
- Processing capacity
- Required separation results
- Industry requirements
Industrial Quality Standards
Our equipment is designed according to industrial requirements for:
- Mechanical reliability
- Continuous operation
- Long service life
- Easy maintenance
A Small Decanter Centrifuge provides an efficient and economical solution for pilot-scale testing and small-scale industrial solid-liquid separation applications.
With compact design, continuous operation, and flexible configuration, it offers an ideal solution between laboratory testing and large industrial production.
For companies looking for a Compact Decanter Centrifuge, Pilot Scale Decanter Centrifuge, or customized solid-liquid separation equipment, SEPARATECH provides reliable centrifuge solutions tailored to specific process requirements.
