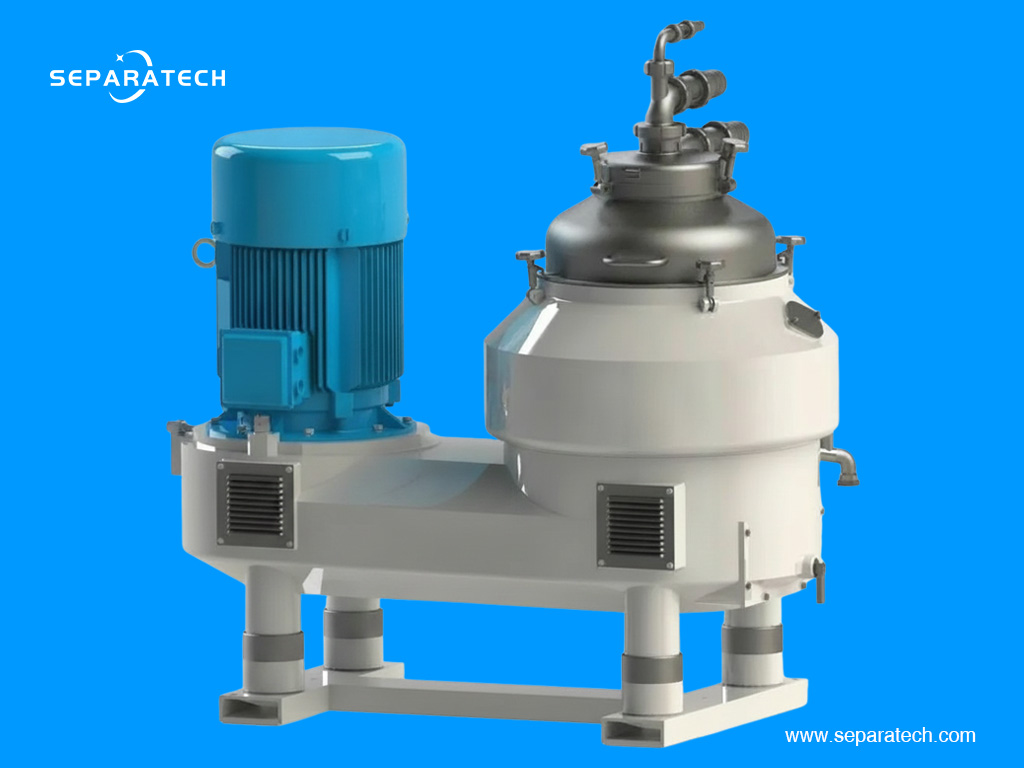

Continuous Nozzle Disc Centrifuge

The SEPARATECH continuous nozzle disc centrifuge represents the ultimate industrial milestone for processing heavy feed slurries with exceptionally high solid concentrations, delivering relentless 24/7 clarification and concentration where standard self-cleaning models would fail due to solids overload. Unlike batch-ejection vertical separators, our engineered continuous nozzle disc centrifuge utilizes a specialized bowl architecture equipped with peripheral tungsten-carbide nozzles. This allows compacted heavy solids to be flung outward and ejected continuously at full operational speeds. By generating centrifugal forces exceeding 9,000G paired with a massive settlement surface area within the conical disc stack, SEPARATECH provides global starch, biotechnology, mining, and chemical plants with a high-throughput automated solution engineered to maintain steady-state torque loads, secure superior phase purity, and eliminate process bottlenecks.

Hydro-Dynamic Working Principle of Continuous Nozzle Discharge

The continuous operating superiority of an industrial continuous nozzle disc centrifuge relies on a steady-state kinetic equilibrium between automated fluid feeding and immediate, uninterrupted nozzle ejection. The feed suspension undergoes three highly synchronized thermodynamic and mechanical stages inside the vertical rotating assembly:

1. High-Volume Material Feed & Smooth Acceleration: The raw, high-solids suspension enters the vertical bowl coaxially through a stationary top inlet pipe. Upon reaching the center hub, the material enters a specialized non-turbulent feed distributor. The fluid accelerates smoothly to match the high bowl speed, completely mitigating hydraulic shear stress and preventing the structural fragmentation of fragile crystalline aggregates or starch granules.
2. Dynamic Centrifugal Stratification inside the Disc Stack: The accelerated slurry is directed into the large conical disc stack. Under intense centripetal acceleration, the heavy solid particles sediment rapidly against the inner underside of each conical disc, sliding downward into the peripheral V-shaped sludge holding space. Concurrently, the clarified light liquid phase tracks inward along the top surface of the discs toward the center axis.
3. Continuous Pressurized Fluid Separation and Solids Ejection: The clarified liquid phase travels upward to the top chamber, where it is intercepted by a stationary centripetal pump (paring disc) and discharged out of the machine under pressure in an absolute air-free state to prevent foaming. Concurrently, the separated heavy solids are continuously forced through the peripheral nozzle orifices by intense internal hydrostatic pressure, exiting the bowl as a highly concentrated paste without stopping the feed stream.

Advanced Concentrate Recirculation & Anti-Clogging Systems

The definitive process advantage of a SEPARATECH continuous nozzle disc centrifuge lies within its sophisticated internal fluid recycling mechanics, engineered to prevent nozzle blockage and maintain a constant discharge concentration:

• The Concentrate Recirculation Loop: When handling fluctuating solids loading in the feed stream, the internal solids concentration can drop, leading to excessive liquid loss through the nozzles. SEPARATECH incorporates an intelligent recirculation loop that diverts a precise fraction of the discharged concentrated sludge back into the bowl base via a separate internal channel.
• Dynamic Density and Viscosity Control: This re-introduced concentrate forms an internal hydraulic barrier directly inside the nozzle zone. By constantly maintaining a high solids density near the orifices, the machine ensures that only a highly concentrated slurry is discharged, drastically optimizing downstream dewatering efficiency.
• Nozzle Clogging Mitigation: By keeping the peripheral nozzles in a continuous state of high-velocity active flow, the recirculation system effectively prevents fine sand, fibers, or crystalline deposits from settling and hardening within the orifices, guaranteeing smooth, uninterrupted plant operations.

In addition to the recirculation loop, our advanced system layout incorporates an automated high-pressure back-flushing sequence designed for intermittent execution. When processing sticky or cohesive protein slurries, a sudden reduction in internal bowl pressure can trigger localized material scaling near the orifice entries. By triggering brief, computerized hydraulic pressure shocks through the separate wash-water channel, the Continuous Nozzle Disc Centrifuge forcefully dislodges any accumulated sticky solids or biological film before crystallization occurs. This synchronized preventative hydraulic action, combined with the hydro-dynamically optimized nozzle internal chamber geometry, ensures a perfectly symmetrical discharge pattern, preserving critical mechanical balance and securing continuous processing accuracy without requiring unscheduled downtime.

Structural Blueprint and Technical Architecture

To endure the immense abrasive wear and structural stresses caused by continuous high-speed solids ejection, the SEPARATECH continuous nozzle disc centrifuge is built with heavy-duty structural metallurgy and advanced electronic controls:

• Centrifugally Cast Duplex Stainless Steel Bowl: The entire high-load rotating bowl assembly is manufactured from high-tensile duplex stainless steel to comply with international high-grade duplex stainless steel standards. This ensures flawless structural integrity, zero micro-porosity, and absolute resistance to stress corrosion cracking under continuous centrifugal loading.
• Tungsten Carbide and Ceramic Nozzle Inserts: Because high-solids slurries are highly abrasive, every peripheral nozzle is equipped with replaceable inserts manufactured from premium tungsten carbide or industrial sapphire ceramics, drastically extending components lifespan and maintaining precise orifice diameters.
• Dual-Motor Variable Frequency Drive (VFD) Matrix: Driven by heavy-duty motors controlled by a fully responsive VFD electronic grid. This configuration provides smooth, controlled belt-driven or direct-drive acceleration, reducing start-up current spikes and allowing field adjustments of bowl speeds to match specific processing viscosities.
• Vibration-Isolated Suspension Spindle: Supported by precision-matched vertical bearings, the drive spindle incorporates a highly resilient, vibration-absorbing spring suspension system that easily dampens transient imbalances caused by inconsistent solids feed profiles.

Critical Applications Across High-Volume Industrial Sectors

The relentless solids-handling capacity and steady-state operation of our continuous nozzle disc centrifuge make it the primary processing choice across diverse global manufacturing sectors:

• Starch and Sweetener Processing: Continuous separation and concentration of corn starch, wheat starch, cassava starch, and the subsequent dewatering of gluten streams.
• Industrial Biotechnology & Yeast Harvesting: High-throughput harvesting of baker’s yeast, fodder yeast, single-cell proteins, and dense bacterial fermentation broths.
• Chemical & Mineral Refining: Classification of kaolin clay slurries, concentration of industrial industrial pigments, and removal of fine catalysts from hydrocarbon streams.
• Ethanol and Distillary By-Products: Clarification of distillery spent wash (stillages) and continuous oil extraction from bio-fuel processing backslop.

Advanced Settlement Dynamics of Continuous Nozzle Disc Centrifuge Systems

Maximizing the steady-state efficiency of a continuous nozzle disc centrifuge requires an expert understanding of internal settlement dynamics and interfacial fluid mechanics. By leveraging advanced principles of fluid dynamics and settling velocities, our process engineers optimize the exact configuration and quantity of peripheral nozzles to perfectly match your target volumetric solids throughput. Furthermore, managing the precise nozzle diameter dictates the internal back-pressure inside the bowl, allowing operators to easily fine-tune the separation line within the disc stack zone. This advanced capability allows the system to easily handle fluctuating solids concentrations in the raw slurry while maintaining premium liquid clarity, exceptional heavy paste concentration, and ultra-low energy consumption under full operational capacities.

Custom Engineering of Continuous Nozzle Disc Centrifuge Solutions

No two high-solids concentration or industrial slurry thickening challenges share identical particle size distributions. SEPARATECH’s dedicated team of process engineers can fully customize the nozzle opening profiles, disc distribution hole placements, concentrate recycling ratios, and frame geometries to align perfectly with your specific fluid viscosity, material density differentials, and abrasive wear challenges.

Contact SEPARATECH today to collaborate with our high-speed high-solids vertical separation specialists. We will provide a comprehensive process evaluation, laboratory pilot testing protocols, and a fully optimized continuous nozzle disc centrifuge technical proposal designed to maximize your production throughput and processing efficiency worldwide.
