Leaf Filter Elements
Pressure leaf filter elements are essential components of pressure leaf filters, which are widely used in various industries for liquid-solid separation. Pressure leaf filters consist of a vertical or horizontal vessel with a number of filter leaves inside. The leaf filter elements – filter leaves are made of stainless steel or other corrosion-resistant materials and have fine pores that allow the liquid to pass through while retaining the solid particles.
The leaf filter elements are arranged in a vertical or horizontal configuration inside a pressure vessel. The vessel is filled with the slurry (the mixture of liquid and solid particles) to be filtered. The pressure inside the vessel forces the liquid to flow through the mesh, leaving behind the solid particles on the surface of the leaf filter elements. The solid particles form a cake that can be removed by backwashing, scraping, or vibrating the leaf filter elements.
The filtration efficiency and clarity of any liquid-solid separation system rely fundamentally on the structural integrity of its internal media. SEPARATECH designs and manufactures premium-grade pressure leaf filter elements (also known as filter leaf screens) that deliver uncompromising performance under rigorous industrial thermal and pressure cycles.
Constructed entirely from multi-layer stainless steel wire mesh, our clothless filter leaves eliminate the heavy manual labor, frequent tearing, and product retention associated with traditional fabrics. Whether you are running a complete SEPARATECH filtration system or looking to source robust replacement leaves to retrofit standard OEM filter brands, our engineered elements extend service life and maximize processing uptime.

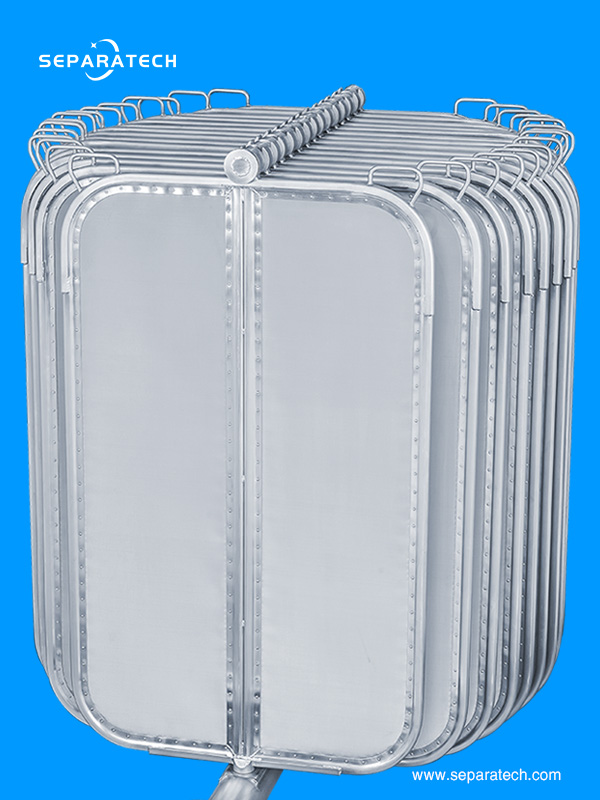

Vertical pressure leaf filter elements Leaves
Vertical leaves are used exclusively in horizontal vessels and most often in vertical vessels. This leaf arrangement allows for quick release of the filter cake and discharge by gravity. Constant flow throughout the cycle is required to maintain cake formation.

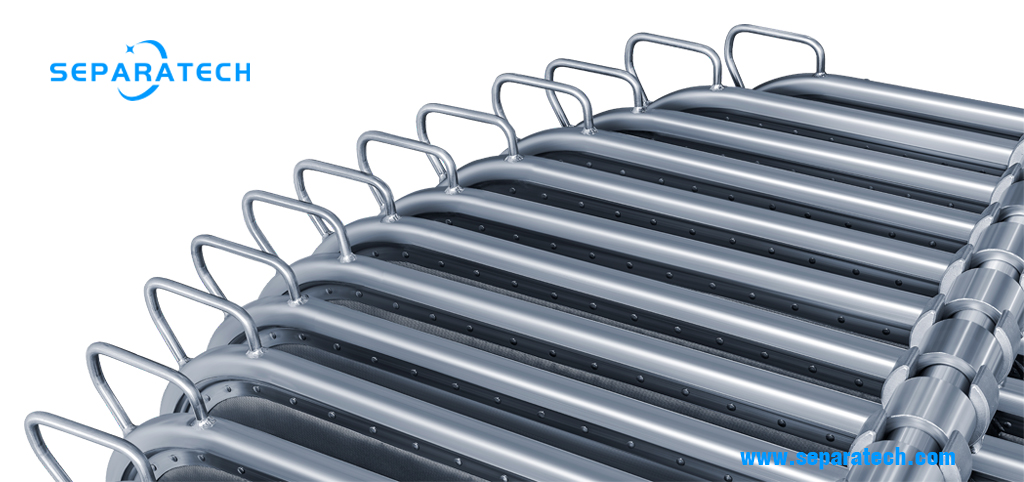

Horizontal pressure leaf filter elements
Horizontal leaves are used to permit interrupted flow. During periods of low or zero flow, the cake is held on by gravity. A sluicing discharge is used to wash the cake off the leaves. A tailings leaf is available with this configuration.

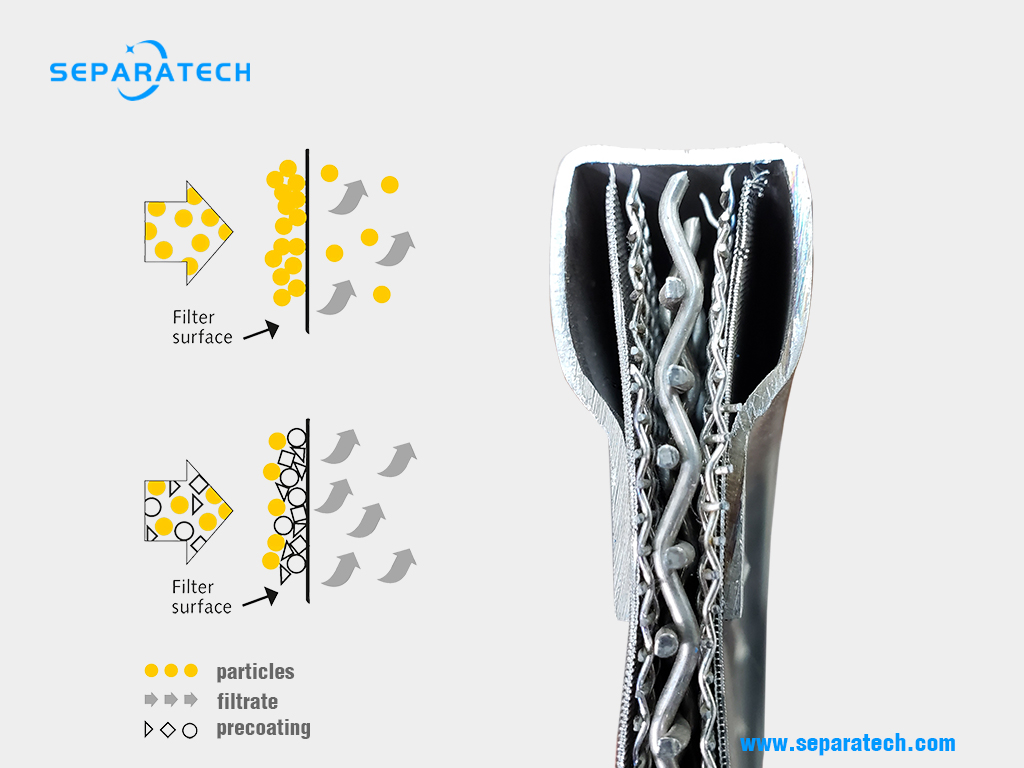

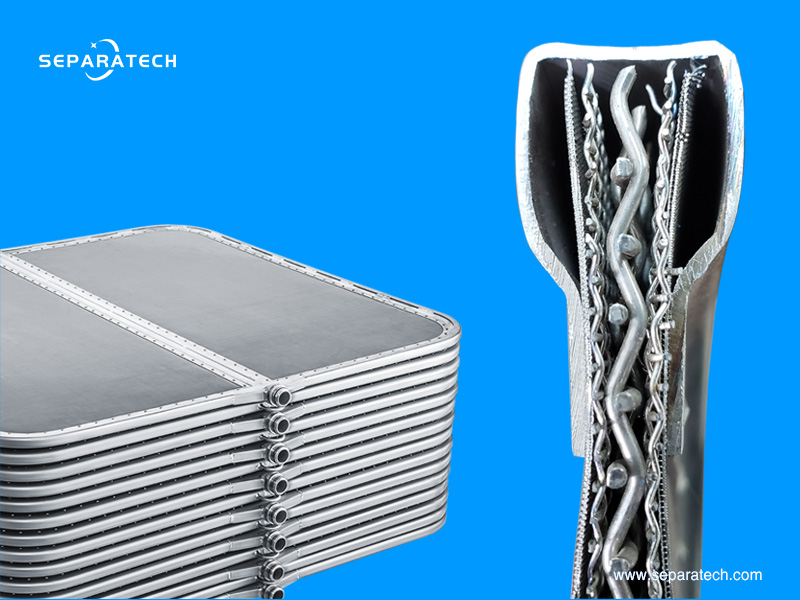

Advanced Multi-Layer Mesh Architecture
A superior leaf filter element must balance rapid fluid flow with strict micron retention. SEPARATECH achieves this through a precision-engineered 5-layer or 7-layer wire mesh binding matrix:
- Dual Outer Filtration Layers: High-precision, fine Dutch woven wire meshes that lock in the exact micron rating required, preventing fine solid migration and ensuring a uniform pre-coat layer.
- Intermediate Support Layers: Coarser mesh plies positioned directly beneath the filtration cloth to provide necessary fluid drainage spacing and prevent the outer cloth from deflecting.
- Heavy-Duty Central Drainage Core: A massive, high-calibrated internal grid mesh that facilitates smooth, unrestricted laminate flow of the clean filtrate toward the bottom outlet nozzle.

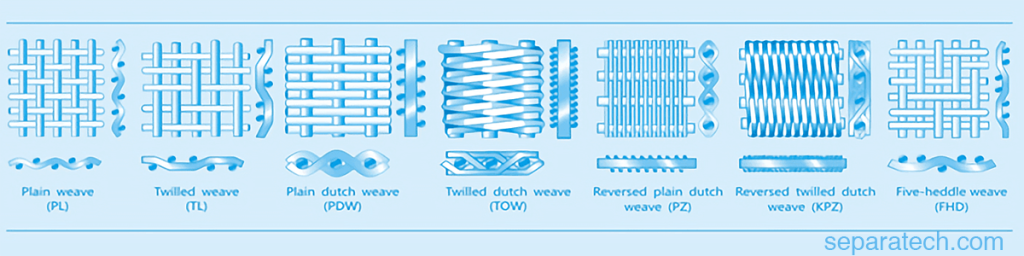

Various woven wire mesh
The Twilled Weave is produced by passing each fill wire alternately over and under two warp wires. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines. This weave allows the use of proportionately heavier wires in a particular mesh count (number of openings per lineal inch) than is possible in plain weave. This cloth has a wide application capable of supporting greater loads and finer filtrations.
The Dutch Weave is produced by the use of coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the warp and a fine mesh with relatively smaller wire in the fill. This weave results in greater strength with very fine openings and is primarily used as a filter cloth. The shape and position of the openings aid particle retention and increase filter cake formation.
The Plain Weave is the most commonly used and simplest wire cloth weave. Each warp wire (wire running-parallel to length of cloth) passes alternately over and under the wires running traversely through the cloth (fill or shoot wires) at 90 degree angles. It has an extremely wide range of applications.
The Twilled Dutch Weave is produced by a combination of the features of the Dutch Weave and the Twilled Weave. Fill wires are passed alternately over and under two warp wires forming a fine mesh in one direction and a coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the other. This type of weave is capable of supporting greater loads than the Dutch Weave, with finer openings than the Twilled Weave. It is used in applications where the filtering of heavy material is necessary.
Robust Frame Engineering & Fluid Sealing Options
To prevent the common operational failure of leaf warpage or edge bypassing under high differential pressure (∆p), SEPARATECH utilizes advanced structural reinforcement:
- Rigid Profile Edge Framing: The multi-layer wire mesh pack is tightly bound into a heavy-duty side profile channel frame. Depending on your chemical application, we offer either a riveted profile, bolted profile, or a fully welded profile for zero-leakage cross-contamination security.
- Precision-Machined Outlet Nozzles: Our bottom discharge nozzles are engineered to strict tolerances, ensuring an airtight, hermetic seal when plugged into the vessel’s main manifold grid. Outfitted with high-performance O-rings, they eliminate unfiltered fluid bypass.
Universal Retrofitting: Compatible with All Major OEM Brands
One of SEPARATECH’s greatest market strengths is our ability to supply universal replacement leaf filter elements. We customize dimensions, nozzle lengths, and mounting hook configurations to directly drop into existing vessels from international manufacturers, providing a cost-effective upgrade without altering your piping layout:
- Perfect Dimensional Match: Manufactured following exact architectural drawings or physical sample digitizing.
- Enhanced Filtration Surface Area Optimization: Our slim-profile frame design often allows for tighter leaf pitch spacing, safely packing more filtration area into your existing pressure vessel.
Preventive Leaf Maintenance & Mesh Re-screening Services
To ensure consistent filtrate clarity and avoid structural damage to your leaf screens, SEPARATECH’s separation specialists recommend following these maintenance protocols:
- Monitor Differential Pressure Limits: Never exceed the recommended maximum ∆p (typically 0.35 to 0.45 MPa). High pressure differentials can permanently bow the flat elements, ruining the filtration layer alignment.
- Professional Re-screening: If the outer filtration mesh is compromised but the heavy-duty stainless steel frame and nozzle remain intact, SEPARATECH provides rapid re-screening services, replacing the mesh pack to restore OEM-level performance at a fraction of the cost of a brand-new element.
Technical Specifications & Alloy Material Matrix
| Parameter / Profile | Standard Specification | Premium / Heavy-Duty Option | Custom Customizations |
|---|---|---|---|
| Mesh Configurations | 5-Layer Construction | 7-Layer Heavy Core Grid | Asymmetric Mesh Weaves |
| Common Alloys | SS304 / SS316L | 904L / Hastelloy | Super Duplex Stainless Steel |
| Micron Ratings | 15µm – 80µm | Under 15µm (Fine Polishing) | Coarse Pre-filtration (>80µm) |
| Frame Assembly | Riveted Frame Channel | Heavy Bolted / Welded Frame | Customized Manifold Adapter |
Note: Selecting the proper alloy is critical. For example, processing high-temperature corrosive slurries like molten sulfur requires premium Hastelloy elements, while standard edible oil bleaching lines typically deploy high-tensile SS316L.
